Vapor recovery systems
Fuel combustion, the primary cause of CO2 emissions in the industry sector, is mainly used as "vapor". Reusing this vapor contributes to energy savings and CO2 emission reductions.

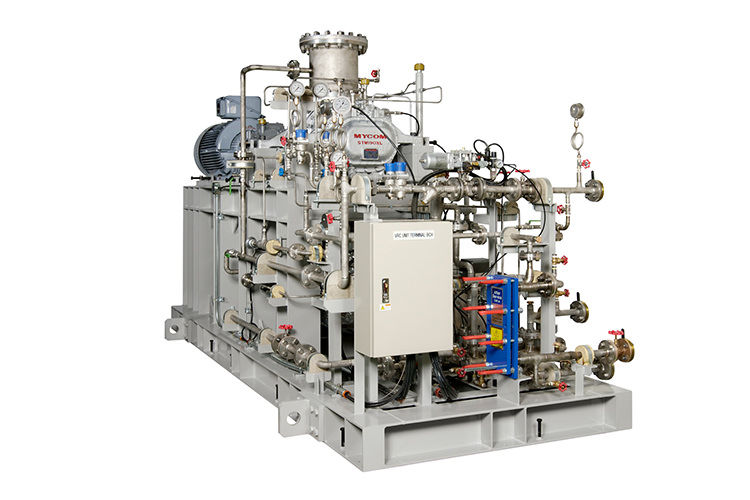

Vapor Recompression (VRC) System
This energy-saving system reduces boiler steam consumption by recovering steam from rectifiers in
breweries and vapor from the top of rectifier tanks in distilleries as low pressure steam.
The pressure on that steam is increased and then reused as heating steam in the boiling kettle or
the bottom of rectifier tanks.
SPECIFICATIONS
STM190XL, STM370XL
47.4kPaA (80℃) to 101.3kPaA (100℃) [7PSIA (176℉) to 15PSIA (212℉) ]
STM190 0.15MPaG (140℃) [22PSIG (284℉) ]
STM370 0.25MPaG (150℃) [36PSIG (302℉) ]
STM190 0.8 to 2.0ton/h (0.49 to 1.22lb/s)
STM370 3.0 to 7.5ton/h (1.84 to 4.59lb/s)
