Refrigeration systems

Choose from a range of refrigeration systems according to your temperature needs and facility size. The freezing and refrigeration technologies that Mayekawa has developed through a long history of designing, constructing, and servicing refrigeration plants support the reliability and trustworthiness the company's products have earned. Additionally, in order to contribute to the prevention of global warming and ozone layer protection, we are increasing our product lineup by continually developing extremely safe and efficient refrigeration systems that use natural refrigerants.

Ultra-low temperatures -50 to -100℃ (-58 to -148℉) PascalAir - air cycle system

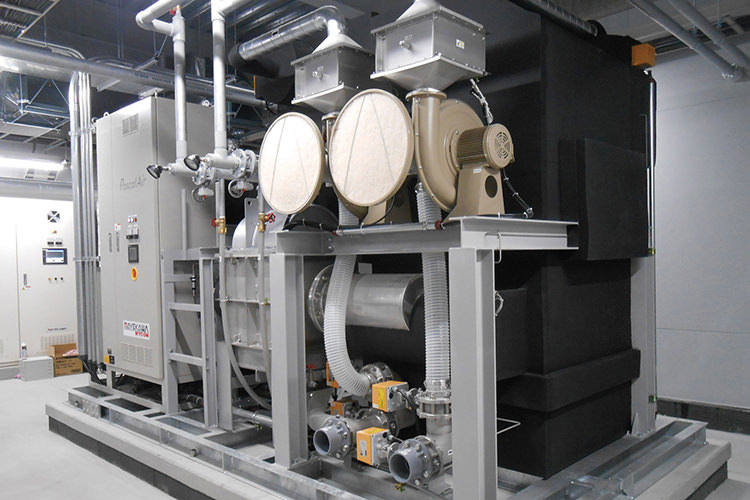

PascalAir

Since air acts as the refrigerant, not an HFC, there is no refrigerant-induced impact on the global environment. Furthermore, in the ultra-low temperature range from -50 to -100℃ (-58 to -148℉), it is possible to reduce CO₂ emissions and achieve energy savings of up to 50 percent compared to conventional vapor pressure refrigeration systems.

SPECIFICATIONS

Open cycle type

Cooling capacity: PAS15-R 15kW (4.3TR), inside temperature -60℃ (-76℉)

PAS30-R 30kW (8.5TR), inside temperature -60℃ (-76℉)

Inside temperature: -50 to -100℃ (-58 to -148℉)

Refrigerant: N.A. (working fluid: air)

Closed cycle type (Brine cooler)

Cooling capacity: 15/34kW (4.3/9.7TR)

Brine supply temperature : -50 to -90℃ (-58 to -130℉)

Refrigerant: Nitrogen or air

WHERE TO USE

Cold storage for tuna/oceanic bonito

Rapid freezing

Freeze-drying

Home appliance recycling (cryogenic grinding)

Semiconductor manufacturing processes

Ultra-low temperature storage (-70℃) of Vaccine.

Markets requiring ultra-low temperatures such as the medical, pharmaceutical, and physics/chemistry fields

For freeze-drying and freezing, inside temperature -40 to -50℃ (-40 to -58℉) NH₃/CO₂ cascade refrigeration system

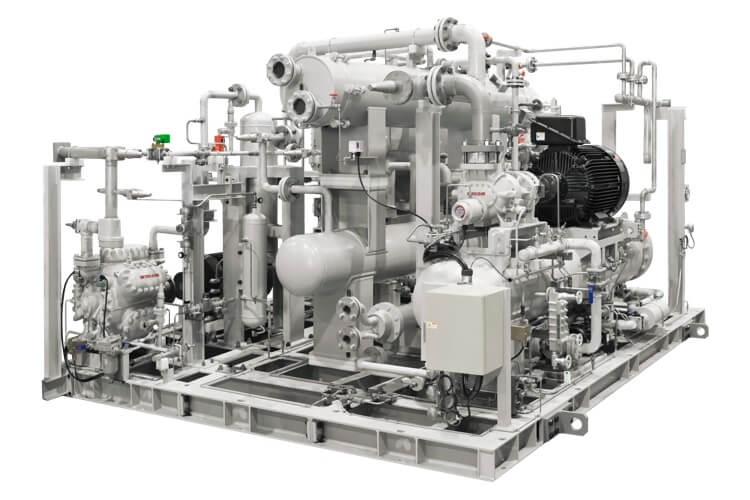

NH₃/CO₂ cascade refrigeration system

An environmentally friendly cascade refrigeration system that uses ammonia as a refrigerant on the higher-temperature side and CO₂ on the lower-temperature side. As only CO₂ is supplied as the secondary refrigerant, the risks associated with ammonia are minimized. This product is suited for use in situations where low temperatures are needed, such as freezers that have internal temperatures of -40℃ (-40℉) or lower. By controlling the number of refrigeration compressors on the high-and low-temperature sides, it is possible to operate the system in line with the required load.

SPECIFICATIONS

Cooling capacity: 150 to 800kW (42.6 to 227.4TR) -40℃ (-40℉)

Inside temperature: -40 to -50℃ (-40 to -58℉)

Refrigerant: HT side ammonia (R717), LT side CO₂ (R744)

WHERE TO USE

Ice cream hardening line

Product processing (freezing, freezer, freeze-drying)

7500m³(9800yd³) F class -20℃ (-4℉) or lower, C class -10 to -20℃ (14 to -4℉) NewTon R/C/F/S - NH3/CO₂ cooling system

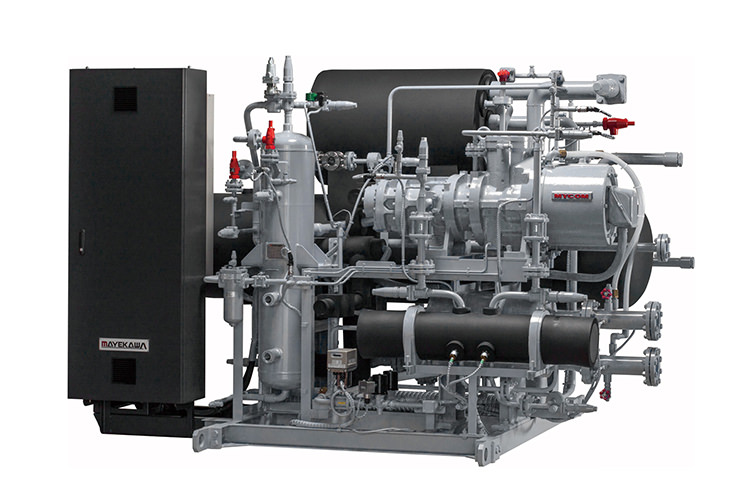

NewTon R

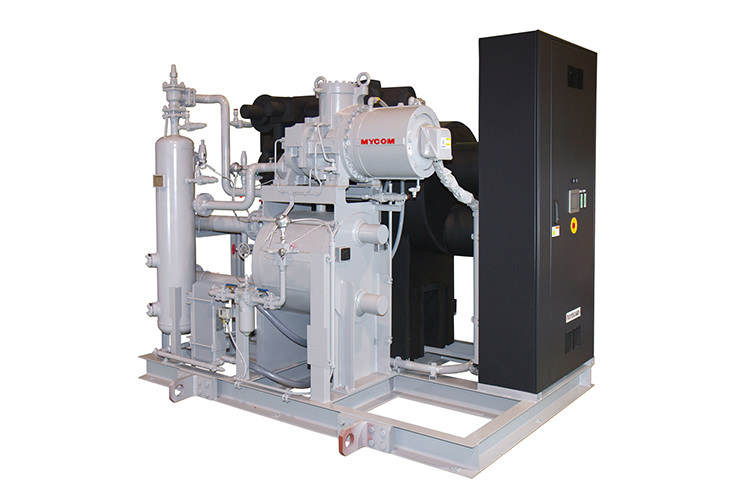

NewTon C

Developed to counter the global warming impacts of the industrial refrigeration field, NewTon is a highly efficient non-freon refrigeration system that uses natural refrigerants. Refrigeration compressor manufacturer Mayekawa employs the latest technologies in all of its compressor with IPM(Interior permanent magnet) motor, heat exchangers, and controllers.
Highly energy efficient, NewTon reduces the power consumption of the entire system, thus contributing to the reduction of energy-derived CO₂. Additionally, there is a rich lineup of NewTon products that have been designed to always operate efficiently in line with customer needs from freezer warehouses, cold storages, loading rooms, freezers, vacuum freezing, soil freezing, skating rinks and ice making.

SPECIFICATIONS

Cooling capacity*:

NewTon R 94.7 to 270.0kW (26.9 to 76.8TR)

NewTon F 70 to 170kW (19.9 to 48.3TR)

NewTon S 182.5kW (51.9TR)

*In the case of cooling water at 32 ℃ (90℉)

Inside temperature:

NewTon C 2 to -10℃ (36 to 14℉)

NewTon R -20 to -30℃ (-4 to -22℉)

NewTon F -30 to -40℃ (-22 to -40℉)

NewTon S (ice rink) -3 to -5℃ (27 to 23℉)

Refrigerant: primary ammonia (R717), secondary CO₂ (R744)

Remote monitoring service

WHERE TO USE

Cold storage

Ice making plant

Frozen, chilled food

Ice arena

Learn more about Newton

5000m³(6500yd³) F class -20℃ (-4℉) or lower REABEL - NH₃/CO₂ cooling system

REABEL

Equipped with a highly efficient semi-hermetic reciprocating compressor, REABEL is a natural refrigerant cooling system for small-scale installations such as freezer storages, small-sized freezers, and other freezing applications.
Using the natural refrigerants ammonia and CO₂, it is environmentally friendly while also demonstrating excellence in efficiency, reliability, and safety.

SPECIFICATIONS

Cooling capacity*:

RCS-22L-PR2I 37.1kW (10.5TR)

RCS-22L-NN2I 37.1kW (10.5TR)

Inside temperature: -20 to -35℃ (-4 to -31℉)

Refrigerant: primary ammonia (R717), secondary CO₂ (R744)

WHERE TO USE

Refrigerated storage installations, nominal capacity of 500 to 2,000 t (1102311 to 4409245lb) *when two units are connected.

Flake ice making facility, 10 t/day (22046lb/day)

Freezing facilities using small-scale freezers, freezer processing capacity 100 to 200kg/h (220 to 441lb/h)

Batch freezing facility, 1 to 3t/day (2205 to 6614lb/day)

Process cooling equipment

Food processing, fats and oils manufacturing, etc.

For use with small-to medium-sized facilities/C class, inside temperature 10 to -10℃ (50 to 14℉) SIERRA A/W - NH₃/CO₂ chilled package

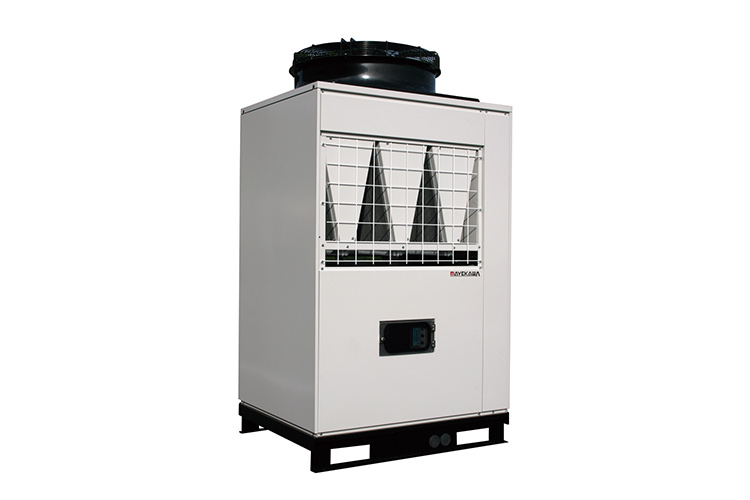

SIEERA-A

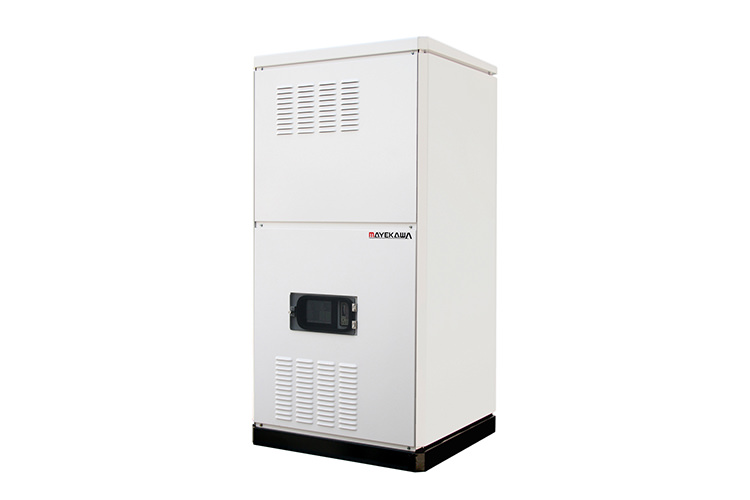

SIEERA-W

The SIERRA series was developed to meet the demand for natural refrigerants in the chilled temperature market for small and medium-sized loading rooms and ante rooms that to date had to be handled by refrigeration units that utilized HCFC and HFC refrigerants. Using the natural refrigerants ammonia and CO₂, it is environmentally friendly while also demonstrating excellence in efficiency, reliability, and safety.

SPECIFICATIONS

Cooling capacity*:

SIERRA-A 20.5kW (5.8TR), ambient temperature 35℃ (95℉),

supplied CO₂ temperature -7℃ (19℉), inside temperature 0℃ (32℉)

SIERRA-W 24.1kW (6.9USTR), cooling water inlet temperature 30℃ (86℉),

supplied CO₂ temperature -7℃ (19.4℉), inside temperature 0℃ (32℉)

Inside temperature: 10℃ to -10℃ (50 to 14℉)

Refrigerant: primary ammonia (R717), secondary CO₂ (R744)

WHERE TO USE

Small and medium-sized loading rooms and front rooms

For use with small to medium-sized cold storages and freezing(inside temperature -35℃(-31℉) to 10℃(50℉) and higher) COPEL-F/C - transcritical CO₂ condensing unit

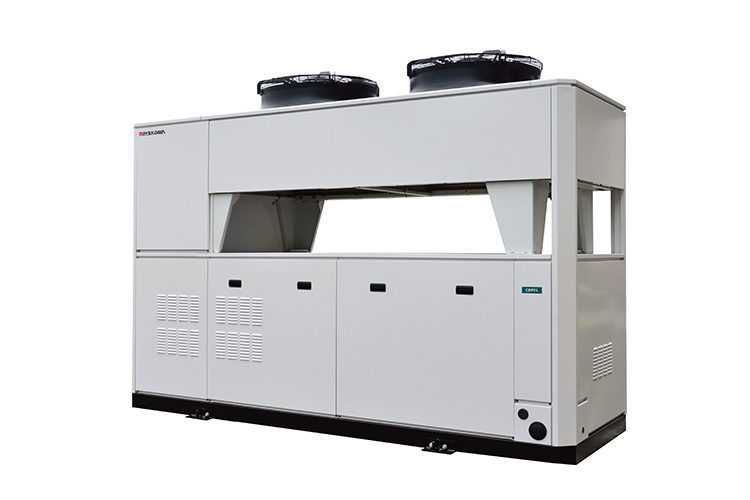

COPEL-C

COPEL is an Air-cooled transcritical CO₂ condensing unit for small to medium-sized frozen and chilled storages, as well as for freezing/cooling process in food factories. This unit is for those who want to save machine space and cut down water consumption.

SPECIFICATIONS

Cooling capacity:

COPEL-F30 25.4 to 34kW (6.6 to 9.7TR),

ambient temperature at -20 to 43℃ (-4 to 109℉)

COPEL-F140 105 to 140kW (29.9 to 39.8TR),

ambient temperature at -15 to 43℃ (5 to 109℉)

COPEL-C70 60 to 70kW (17.1 to 19.9TR),

ambient temperature at -15 to 43℃ (5 to 109℉)

*at 32℃ (90℉) outside temperature

Inside temperature:

COPEL-F30 0 and higher to -35℃ (32 or -31℉)

COPEL-F140 -25 to -35℃ (-13 or -31℉)

COPEL-C70 10 (50℉) and higher to -5℃ (23℉)

Refrigerant: CO₂ (R744)

WHERE TO USE

Cold storage and loading room

Freezing process for food factory

Ice cream freezer

Margarine kneader

Process cooling equipment

CO2 liquefy plant

Heavy duty F class -25 to -40℃ (-13 to -40℉) South Polar - NH₃/CO₂ cooling system

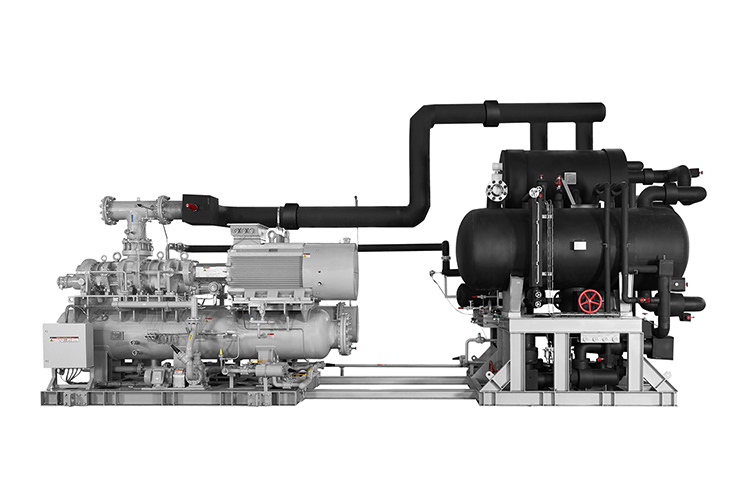

South Polar

South Polar is developed based on the technology cultivated through NewTon R&D, which is a CO₂ brine cooler unit that uses safe, highly efficient, eco-friendly ammonia as a refrigerant.
The unit is safe as ammonia only circulates in the machine room, and the amount of the charge is kept to a minimum.

SPECIFICATIONS

Cooling capacity: 440kW (125.1TR)

Inside temperature: -25 to -40℃ (-13 to -40℉)

Refrigerant: primary ammonia (R717), secondary CO₂ (R744)

WHERE TO USE

Cold storage

Frozen and chilled food

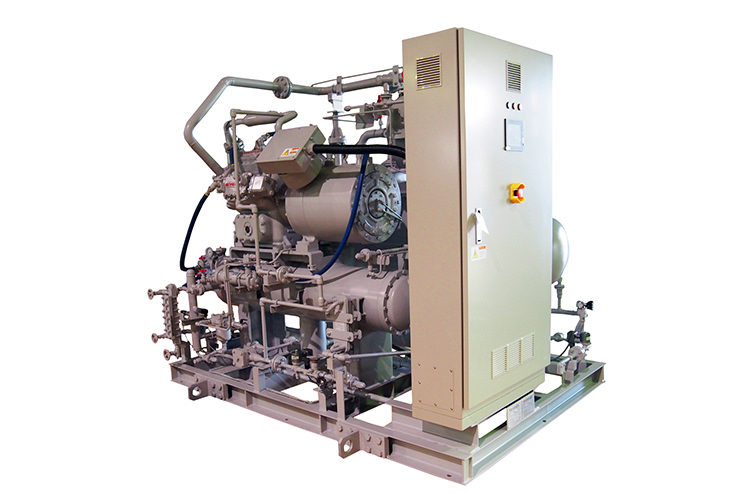

Condensing unit

With a core utilizing the MYCOM compressor, which is produced in-house and boasts a wide-ranging lineup, a diverse range of condensing units can be designed and manufactured.
The control panel is also produced in-house.
We will propose the condensing unit most suited to client needs.

SPECIFICATIONS

Cooling capacity:

30 to 3000 kW (8.5 to 852.9TR) *NH3, Te=-10℃ (14℉)

30 to 8500 kW (8.5 to 2416.6TR) *NH3, Te=-40℃ (-40℉)

Inside temperature: -60 to 5℃ (-76 to 41℉)

Refrigerant: ammonia (R717), HFCs

WHERE TO USE

Cold storage

Processed food production processes

Industrial product processes

Ice-making plants, etc.
